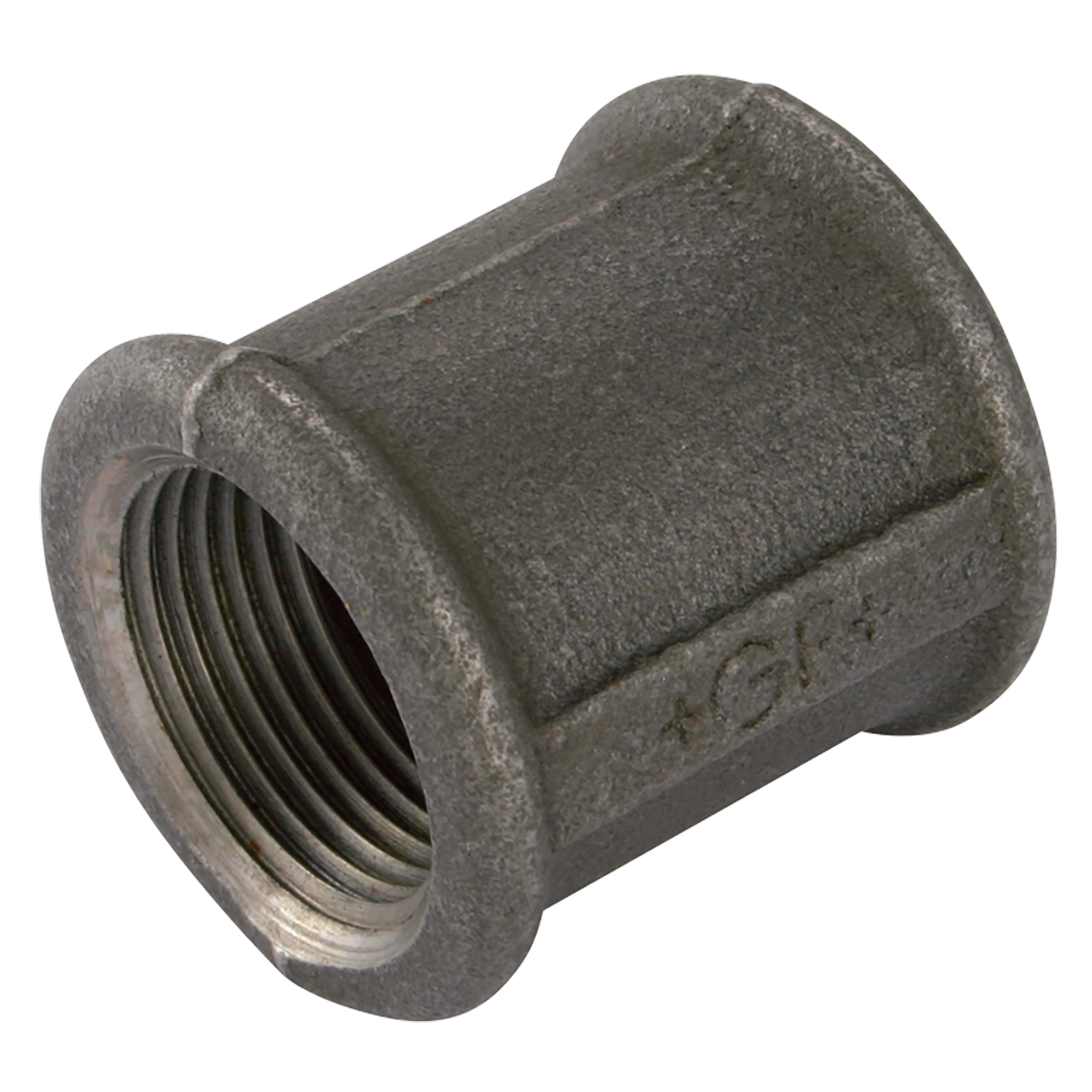

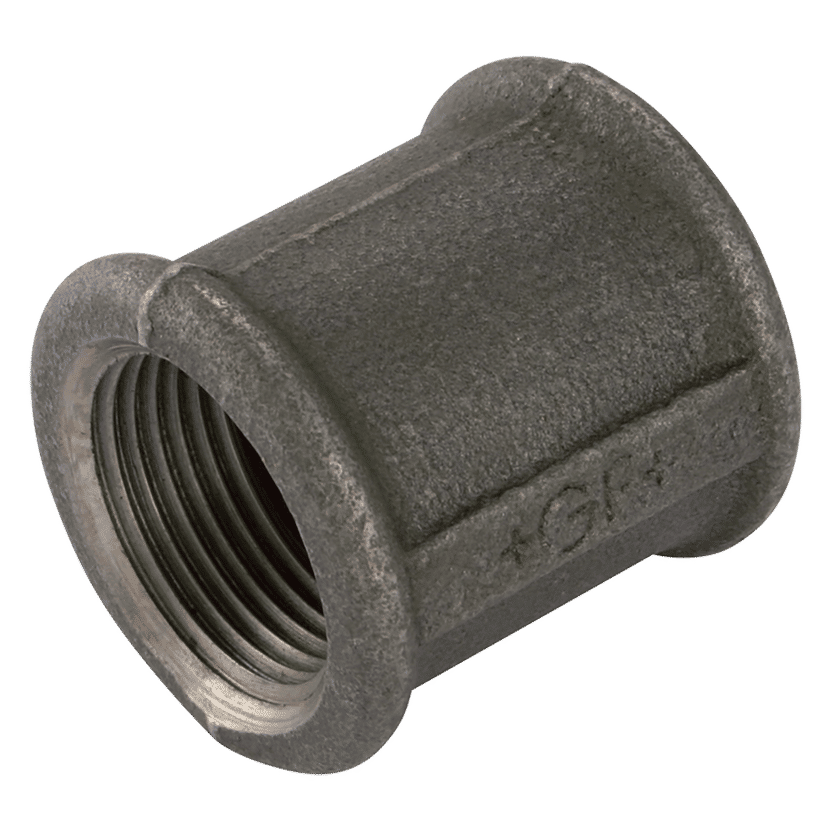

GF 2" BSPP Female Equal Socket Black GF270
Product Code: GF270-2N
...
Immediately Available - 2 in stock
tech sheet 1785
Details
Maximum Working Pressure bar
25
Brand
GF
Thread Type A
BSPP
Thread Size A
2"
Working Temperature
-20°C to 120°C
Thread Gender A
Female
Specification
2" BSP Parallel Female, Malleable Iron Pipe Fitting, Black, Equal Socket, Fig. 270, Working Temperature -20°C up to +120°C, Maximum Working Pressure 25 bar, GF
Threads: Threads are British Standard taper to IS07 and BS21. All male threads are BSPT and female threads are BSPP. To EN 10226-1 and EN ISO 228-1. Materials: Whiteheart malleable cast iron EN-GJMW-400-5 to EN 1562. Media: Suitable for the flow of water, steam, gas or other non aggressive media. Surface Finishing: Two types are available: Black: With an anti-corrosive varnish to protect against rust after installation prior to plant conditioning. Galvanised: Hot-dip zinc coated to give additional resistance to corrosion. GF270-18N and GF270-14N fittings are made of steel (galvanised finish - electro plated) and therefore unsuitable for potable water installations.
