Available to Order
tech sheet 10316
Details
Piston Rod Material
Stainless Steel
Port Size Metric
M5
Bore Size mm
12
Maximum Working Pressure bar
10
Piston Rod Thread Gender
Male
Thread Gender
Female
Stroke Length mm
25
Piston Rod Thread
M6
Magnetic
Y
Brand
IMI Norgren
Working Temperature
-10°C to +80°C
Cushioning
Buffer
Barrel Material
Stainless Steel
Locknut Thread
M16 x 1.5
Thread Type
Metric
Specification

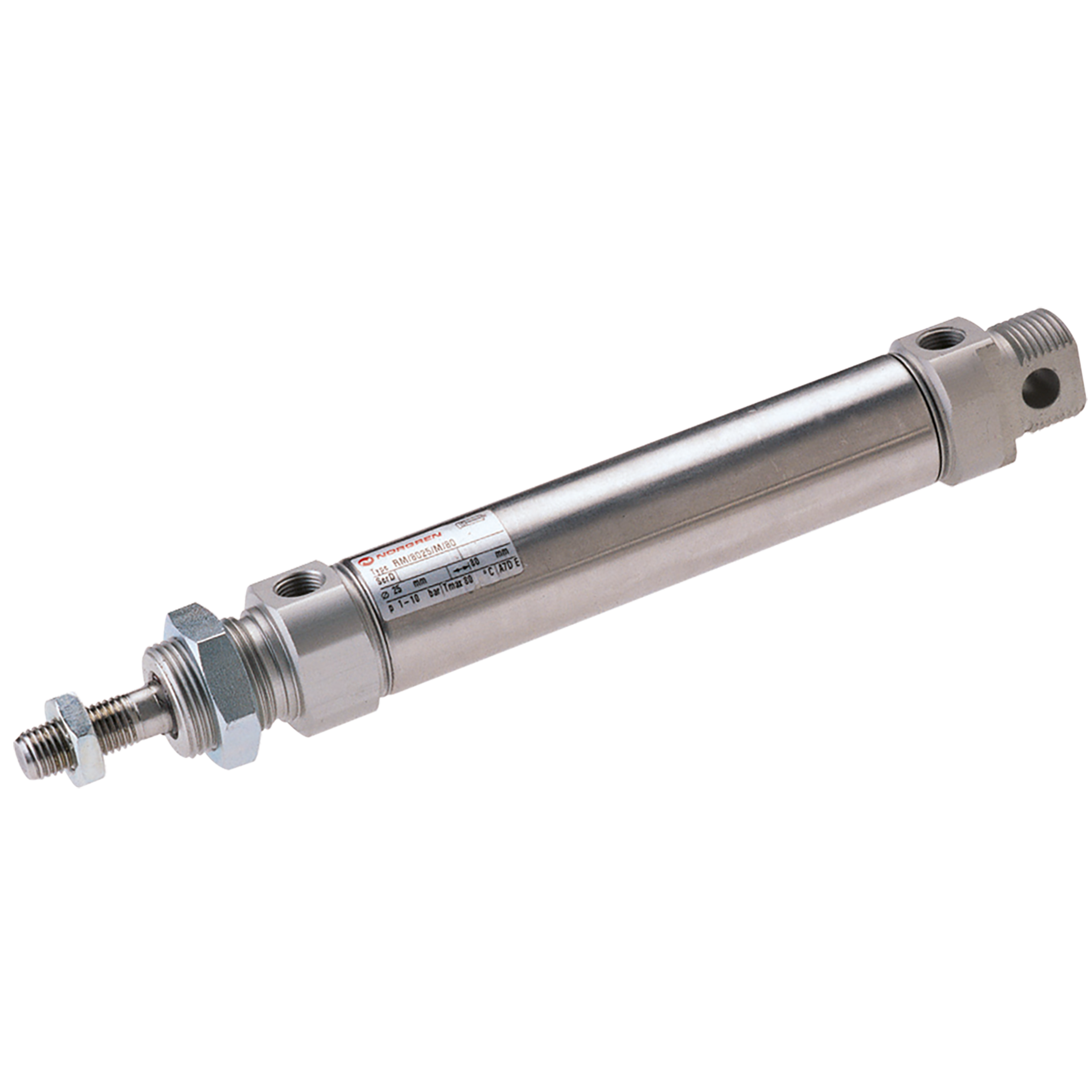

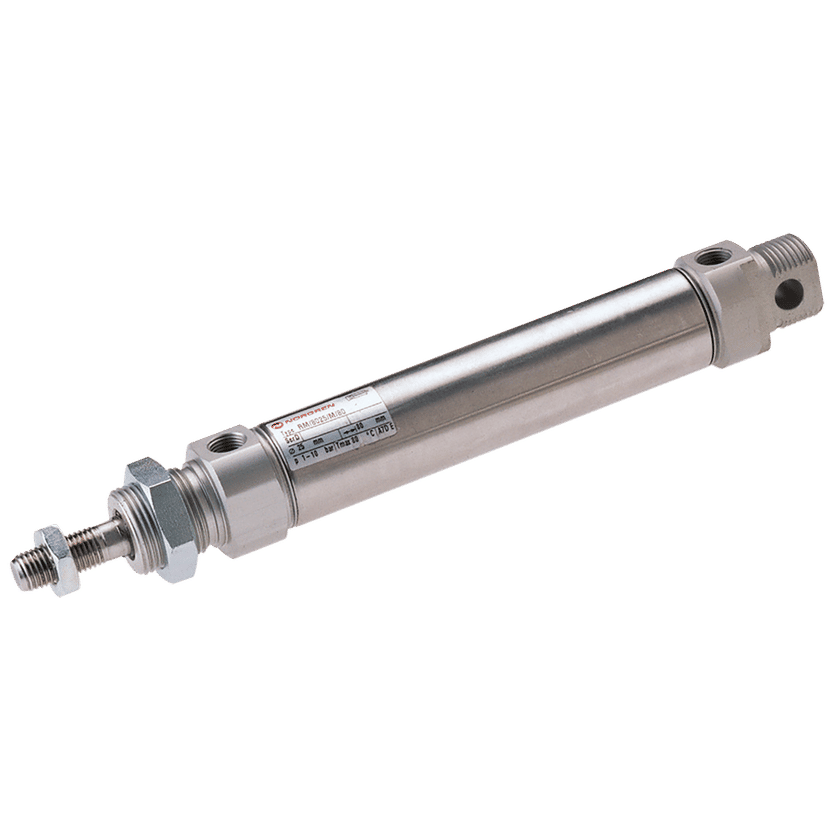

M5 Metric Female Ports, 12mm Bore x 25mm Stroke Length, ISO 6432 Cylinder, Double Acting RM/8000/M, Magnetic, Standard, Stainless Steel Barrel and Piston Rod, Buffer Cushioning, M6 Male Rod Thread, M16 x 1.5 Locknut, Working Temperature -10°C, Maximum Working Pressure 10 bar, IMI Norgren
Magnetic piston as standard. Generally conforms to ISO 6432. High strength, double crimped end cap design. Corrosion resistant. Nose mounting nut and piston rod locknut as standard. Optional port arrangement for compact installation. Medium: Compressed air, filtered, lubricated or non-lubricated. Standard: ISO 6432. Buffer: Polyurethane. Barrel: Stainless steel (austenitic). Piston Rod: Stainless steel (austenitic). Seals: Nitrile rubber. End Covers: Clear anodised aluminium alloy. Operation: Double acting, magnetic piston with buffer or adjustable cushioning. Barrel: Stainless steel (austenitic). Piston Rod: Stainless steel (austenitic). Wiper: Polyurethane. Seals: Nitrile rubber. End Covers: Clear anodised aluminium alloy.
Additional Variants
Product Name
Product Code
Port Size Inch
Thread Type
Piston Rod Thread
Locknut Thread
Bore Size mm
Stroke Length mm
Buy Price
1/8"
BSPP
M8
M22 x 1.5
20
25
£56.61
Available to Order
1/8"
BSPP
M10 x 1.25
M22 x 1.5
25
25
£58.67
Available to Order
–
Metric
M6
M16 x 1.5
16
100
£53.09
Available to Order
1/8"
BSPP
M8
M22 x 1.5
20
80
£58.09
Available to Order
1/8"
BSPP
M10 x 1.25
M22 x 1.5
25
80
£60.16
Available to Order
–
Metric
M4
M12 x 1.25
10
50
£43.18
Available to Order
–
Metric
M6
M16 x 1.5
12
50
£46.51
Available to Order
1/8"
BSPP
M8
M22 x 1.5
20
100
£58.63
Available to Order
–
Metric
M6
M16 x 1.5
16
50
£52.19
Available to Order
–
Metric
M4
M12 x 1.25
10
25
£42.95
Available to Order
–
Metric
M6
M16 x 1.5
16
25
£51.75
Available to Order
–
Metric
M4
M12 x 1.25
10
80
£43.44
Available to Order
–
Metric
M4
M12 x 1.25
10
100
£43.62
Available to Order
1/8"
BSPP
M8
M22 x 1.5
20
50
£57.28
Available to Order
1/8"
BSPP
M10 x 1.25
M22 x 1.5
25
100
£60.69
Available to Order
1/8"
BSPP
M10 x 1.25
M22 x 1.5
25
50
£59.35
Available to Order
