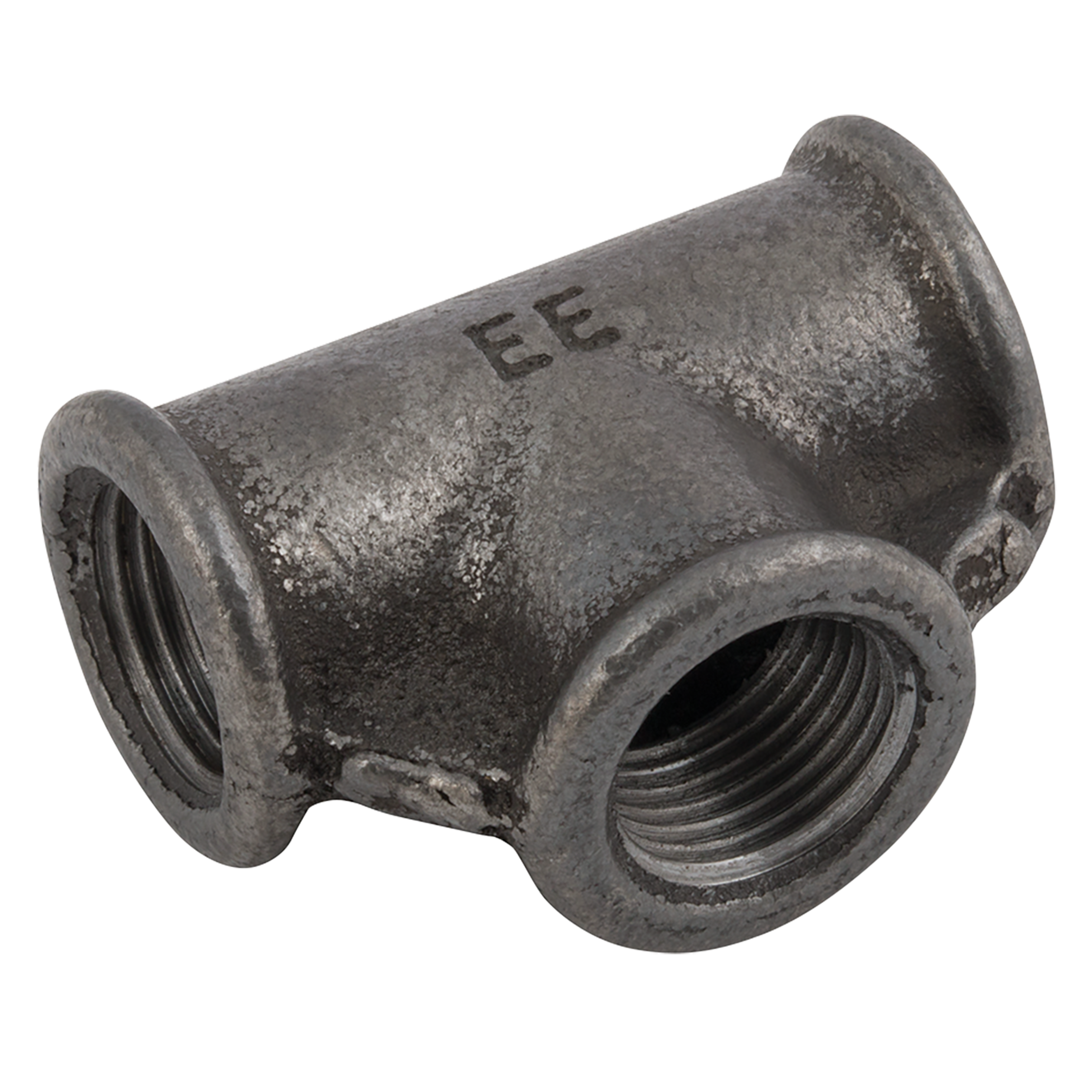

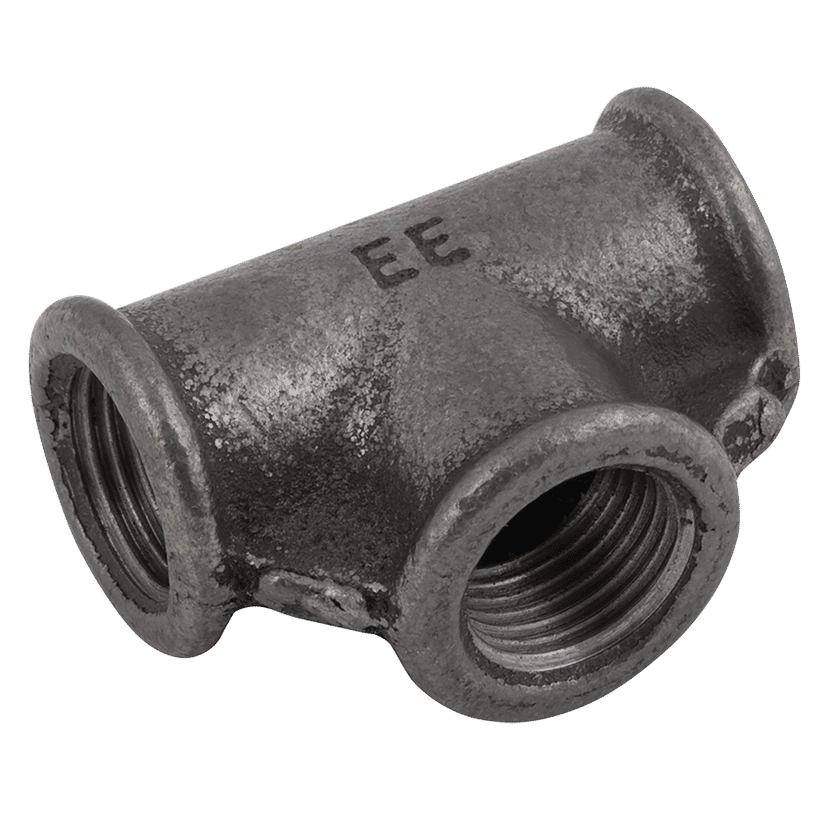

EE 1.1/4" BSP F90 Equal Tee Black
Product Code: EE-MI130-114N...
Immediately Available - 50 in stock
tech sheet 20530
Details
Maximum Working Pressure bar
25
Brand
EE
Thread Type A
BSPP
Working Temperature
-20°C to 120°C
Thread Size A
1.1/4"
Thread Gender A
Female
Specification
1.1/4" BSP Parallel Female, Malleable Iron Pipe Fitting, Black, Equal Tee, Fig. 130, Working Temperature -20°C to +120°C, Maximum Working Pressure 25 bar, EE
Threads: Threads are in accordance to IS07-1. All male threads are BSPT and female threads are BSPP. Materials: Whiteheart malleable EN-GJMW-400-5 cast iron, grade W40-05 according to ISO5922/DIN-1692, and tested in accordance to EN 10242. Media: Suitable for the flow of water, steam, gas or other non aggressive media. Surface Finishing: Two types are available: Black: With an anti-corrosive varnish to protect against rust whilst in stock and after installation prior to plant conditioning. Galvanised: According to EN 10242, zinc coating weight relative to surface exceeds 500 gr/m² (average layer thickness 70 micron).
