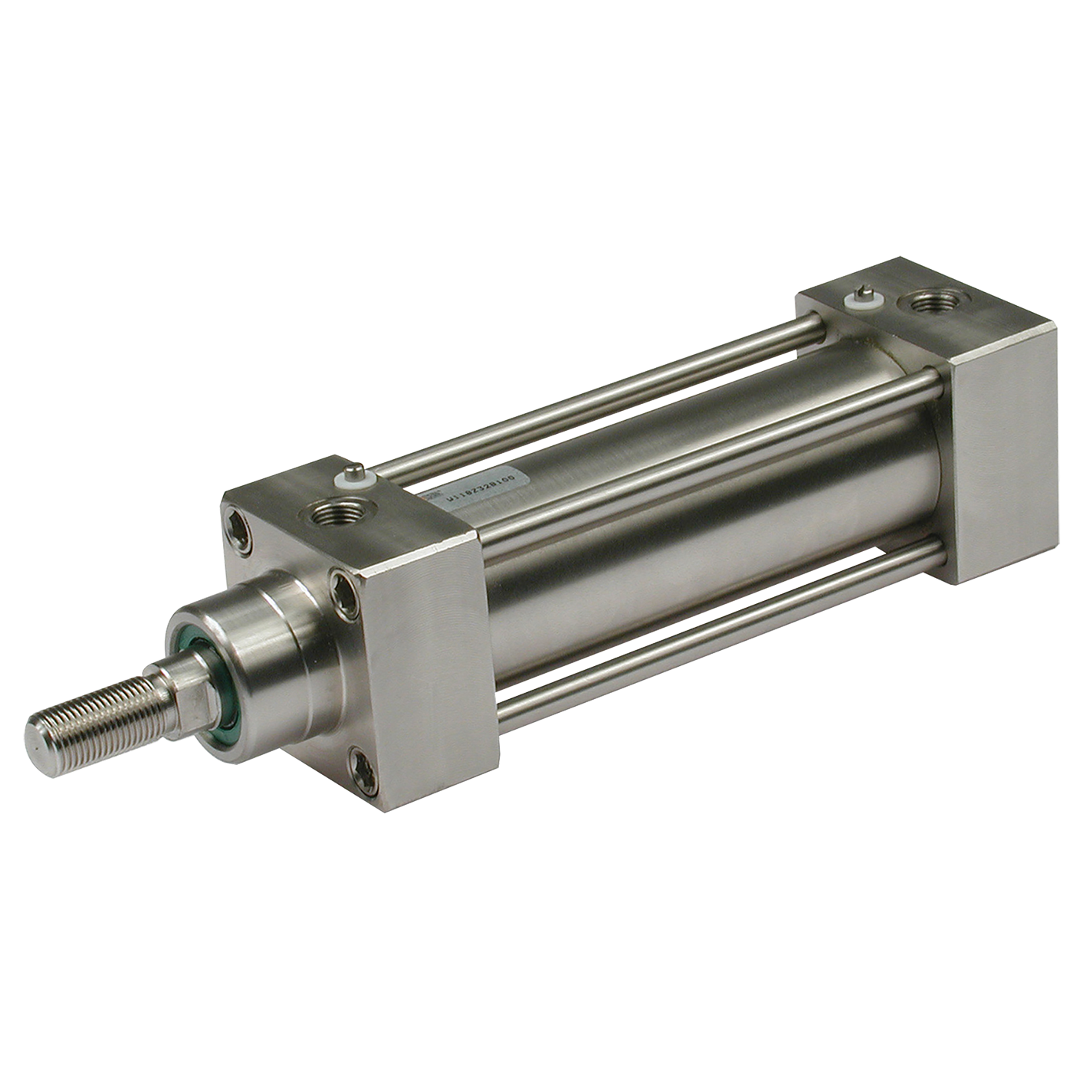

Metal Work SS CYL 100MM DIA X 160MM Stroke
Product Code: W1841000160
...
Available to Order
Details
Maximum Working Pressure bar
10
Piston Rod Thread
M20 x 1.5
Stroke Length mm
160
Piston Rod Thread Gender
Male
Material
Stainless Steel
Magnetic
Y
Barrel Material
AISI 304 Steel
Bore Size mm
100
Brand
Metal Work
Working Temperature
-10°C to +80°C
Piston Rod Material
AISI 316 Steel
Specification
100mm Bore x 160mm Stroke Length, M20 x 1.5 Male Piston Rod Thread, Double Acting Air Cylinder, ISO 15552 Air Cylinder Accessory, Magnetic, Stainless Steel Material, AISI 304 Steel Barrel Material, AISI 316 Steel Piston Rod Material, Working Temperature -10°C to +80°C, Maximum Working Pressure 10 bar, Metal Work
Fluid: lubricated or non-lubricated air.
Additional Variants
Product Name
Product Code
Bore Size mm
Stroke Length mm
Piston Rod Thread
Buy Price
80
80
M20 x 1.5
£722.55
Available to Order
63
200
M16 x 1.5
£778.64
Available to Order
63
160
M16 x 1.5
£490.23
Available to Order
50
50
M16 x 1.5
£574.22
Available to Order
100
500
M20 x 1.5
£1,367.40
Available to Order
63
100
M16 x 1.5
£560.50
Available to Order
63
400
M16 x 1.5
£936.54
Available to Order
32
125
M10 x 1.25
£380.35
Available to Order
32
200
M10 x 1.25
£406.75
Available to Order
50
500
M16 x 1.5
£820.54
Available to Order
50
125
M16 x 1.5
£492.85
Available to Order
40
250
M12 x 1.25
£568.84
Available to Order
40
500
M12 x 1.25
£547.45
Available to Order
40
160
M12 x 1.25
£422.60
Available to Order
40
80
M12 x 1.25
£393.20
Available to Order
63
125
M16 x 1.5
£576.30
Available to Order
63
25
M16 x 1.5
£513.00
Available to Order
32
80
M10 x 1.25
£364.50
Available to Order
63
320
M16 x 1.5
£699.65
Available to Order
80
400
M20 x 1.5
£1,221.38
Available to Order
