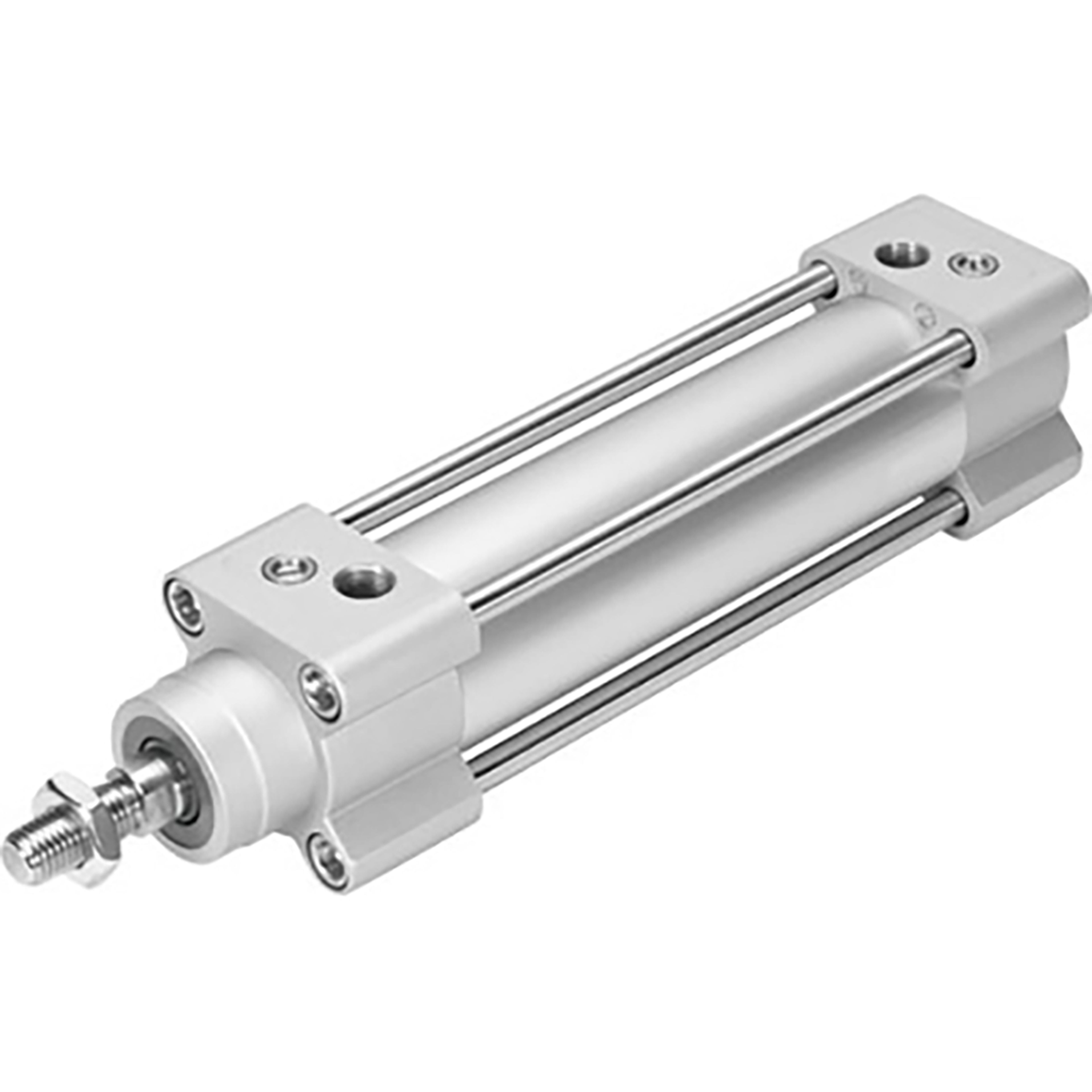

Festo 1/4" BSPP Standards-Based CYL
Product Code: 1646548Manufacturer Code: DSBG-40-40-PPVA-N3
...
Available to Order
Details
Barrel Material
Wrought Aluminium Alloy
Thread Type
BSPP
Piston Rod Thread Gender
Male
Magnetic
Y
Thread Size
1/4"
Piston Rod Thread
M12 x 1.25
Working Pressure bar
0.6 to 12
Cushioning
Adjustable
Brand
Festo
Working Temperature
-20°C to +80°C
Stroke Length mm
40
Piston Rod Material
High Alloy Steel
Bore Size mm
40
Specification
Standards-Based Cylinder Dsbg-40-40-Ppva-N3 Stroke=40 Mm, Piston Diameter=40 Mm, Piston Rod Thread=M12X1,25, Cushioning=Ppv: Pneumatic Cushioning Adjustable at Both Ends, Assembly Position=Any, Festo
Additional Variants
Product Name
Product Code
Stroke Length mm
Bore Size mm
Piston Rod Thread
Working Pressure bar
Buy Price
25
50
M16 x 1.5
0.4 to 12
£184.18
Available to Order
25
40
M12 x 1.25
0.6 to 12
£160.09
Available to Order
250
50
M16 x 1.5
0.4 to 12
£213.21
Available to Order
80
50
M16 x 1.5
0.4 to 12
£191.29
Available to Order
40
50
M16 x 1.5
0.4 to 12
£186.13
Available to Order
400
40
M12 x 1.25
0.6 to 12
£196.36
Available to Order
320
40
M12 x 1.25
0.6 to 12
£188.61
Available to Order
100
50
M16 x 1.5
0.4 to 12
£193.86
Available to Order
250
40
M12 x 1.25
0.6 to 12
£181.84
Available to Order
320
50
M16 x 1.5
0.4 to 12
£222.23
Available to Order
125
50
M16 x 1.5
0.4 to 12
£197.09
Available to Order
160
50
M16 x 1.5
0.4 to 12
£201.61
Available to Order
500
50
M16 x 1.5
0.4 to 12
£245.46
Available to Order
50
50
M16 x 1.5
0.4 to 12
£187.43
Available to Order
100
40
M12 x 1.25
0.6 to 12
£167.34
Available to Order
80
40
M12 x 1.25
0.6 to 12
£165.41
Available to Order
200
40
M12 x 1.25
0.6 to 12
£177.01
Available to Order
160
40
M12 x 1.25
0.6 to 12
£173.15
Available to Order
200
50
M16 x 1.5
0.4 to 12
£206.78
Available to Order
400
50
M16 x 1.5
0.4 to 12
£232.55
Available to Order
