Genebre 3" UL/Fm Wafer BFLY VVE Gear
Product Code: 2113 11
...
Available to Order
Details
Design
Wafer Pattern
Approvals
UL/FM
Liner
EPDM
Working Temperature
0°C to +80°C
Maximum Working Pressure bar
20
Body Material
Ductile Iron
Flange Size Inch
3"
Brand
Genebre
Disc Material
Coated EPDM
To Suit Flanges
PN10, PN16, ANSI150
Operation
Gearbox
Specification

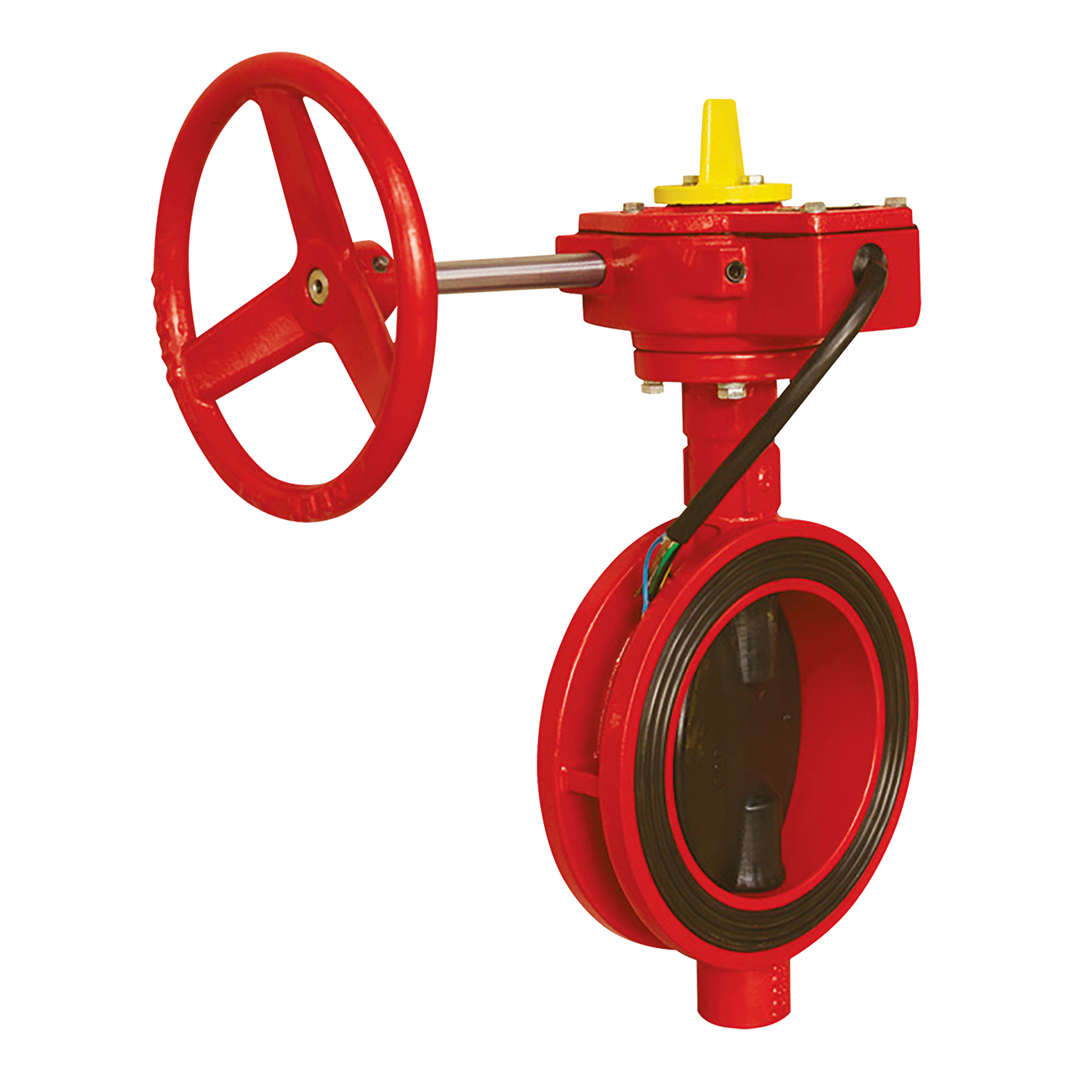

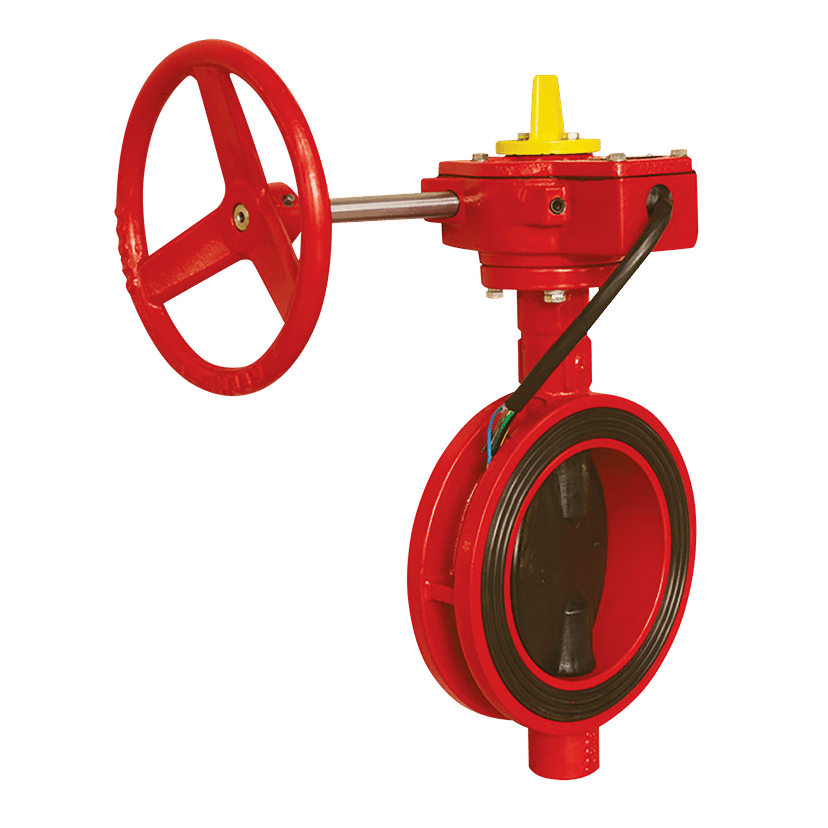

3" Wafer Pattern UL/FM Approved Ductile Iron Body Coated EPDM Disc Butterfly Valve Gearbox Operated, Genebre
Features: Wafer pattern butterfly valve to suit PN10/16 and ANSI150 flanges. Ductile iron EN-GJS-400 body. Coated EPDM disc. UL/FM approved. Fire red RAL3000 epoxy coated valve and switch box. Gearbox containing internal limit switches with flying leads.
Additional Variants
Product Name
Product Code
Flange Size Inch
Buy Price
6"
£483.55
Available to Order
8"
£727.42
Available to Order
4"
£386.73
Available to Order
2.1/2"
£328.60
Available to Order
5"
£427.04
Available to Order
